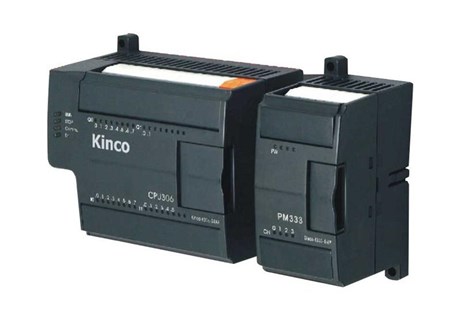

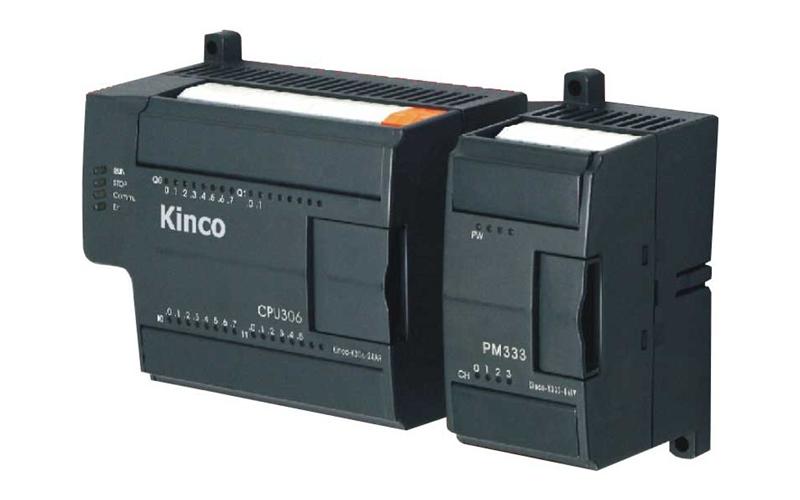

Thông số kỹ thuật của bộ lập trình PLC Kinco K304-14AT

- CPU:        16-Bit Industrial

- Execution Speed:

Typical Bool Instruction Time: <1μS

Word Operation Time: <96μS

Arithmetic Operation Time for Integers: <130μS

Arithmetic Operation Time for Floating Points: <300μS

- DI Points  8XDC24V

- DO Points 6XDC24V

- User Program Memory         EEPROM, 8KB

- Program Backup         Permanent Storage, Without the Need of Battery//1000 Instructions

- Memory Area     Variable Storage Area (V Area): 2KB

System Storage Area (SM Area): 300 Bytes

Internal Storage Area (M Area): 32 Bytes

- Data Retention Characteristic         Configure with the Programming Software: V Area, C (Counter) Area

- Retention Mode and Period   Adopt super capacitors and support a retention period of not less than 144 hours upon power failure under normal temperature.

- Data Backup Characteristic  Perform Backup Operations VB1648 ~ VB1775 According to User Instructions, 128 Bytes in Total

- Backup Mode and Time        EEPROM (Writing Operation for 1 Million Times) Permanent Backup

- Floating Points   Supported; the Whole V Area can be Used for Floating Points

- Programming Language Supported          Ladder Drawing (LD), Instruction List (IL)

- Instruction Set   Basic Instructions: 55; Expansion Instructions: 251

- PasswordProtection     Yes

- Max I/O Number         Digital Data: 14 in Total (DI8, DO6);　

Analog Data: None

- Counter　 64

- Operation Mode of Counter  Addition, Subtraction

- Counter Range   -32768~32767

- Counting Value Retention Function         Yes

- Timer        64

1 ms time Base: 4

10 ms Time Base: 16

100 ms Time Base: 44

- High speed counter      2 Single/Dual-Phase High-Speed Counters

Where, Single-Phase Counter with a Maximum Frequency of 20KHz

Dual-Phase Counter with a Maximum Frequency of 10KHz

- Pulse output

2, PTO (Pulse Train Output)/PWM (Pulse Width Modulation Output);

Maximum Output Frequency: 20 KHz(Note: the elay output CPU does not have high speed pluse function)

- Analog Potentiometer　        -

- Interrupt function        Timing Interruption: 2, 1ms Resolution;

Timer Interruption: T2/T3, 1ms Resolution;

Edge Interruption: 4, Rising Edge or Falling Edge Optional;

High-Speed Interruption, Communication Interruption

- Real-time cholck 0

- Number of Connectable Expansion Modules     -

- COM Port 1, RS232 or RS485;

Supported Working Modes: Programming, Modbus-RTU (Slave), Free Protocol

- Equipment Connected with COM Port    RS232/RS485: PC (For Programming), Third-Party HMI Panel, Third-Party Serial Communication Equipment (For Example, Instruments, Bar Code Reader, etc.)

- Input Power Supply    AC85~265V

- Sensor Load Power Supply  DC24V, Max. 300 mA

- Dimensions (L*W*H)  97X114X70mm
