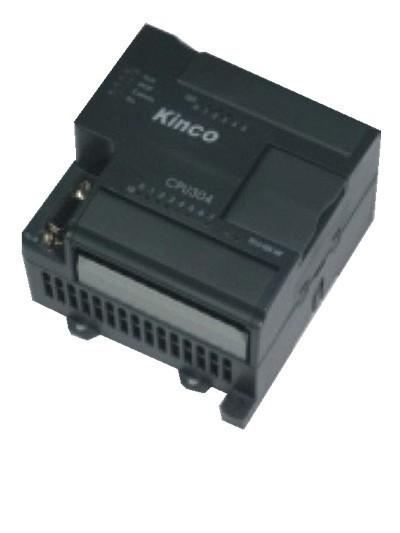

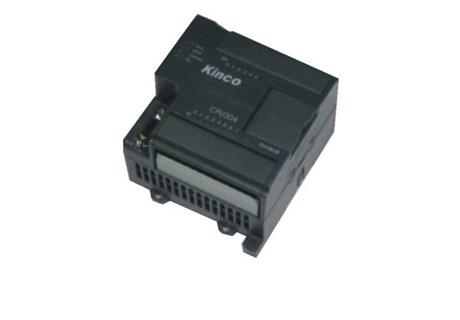

PLC Kinco K304-14AR
PLC Kinco K304-14AR,K304-14AR,PLC Kinco
| Execution Speed | Typical Bool Instruction Time: <1μS | ||
| Word Operation Time: <96μS | |||
| Arithmetic Operation Time for Integers: <130μS | |||
| Arithmetic Operation Time for Floating Points: <300μS | |||
| DI Points | 8XDC24V | ||
| DO Points | 6XRelay | ||
| User Program Memory | EEPROM, 8KB | ||
| Program Backup | Permanent Storage, Without the Need of Battery//1000 Instructions | ||
| Memory Area | Variable Storage Area (V Area): 2KB | ||
| System Storage Area (SM Area): 300 Bytes | |||
| Internal Storage Area (M Area): 32 Bytes | |||
| Data Retention Characteristic | Configure with the Programming Software: V Area, C (Counter) Area | ||
| Retention Mode and Period | Adopt super capacitors and support a retention period of not less than 144 hours upon power failure under normal temperature. | ||
| Data Backup Characteristic | Perform Backup Operations VB1648 ~ VB1775 According to User Instructions, 128 Bytes in Total | ||
| Backup Mode and Time | EEPROM (Writing Operation for 1 Million Times) Permanent Backup | ||
| Floating Points | Supported; the Whole V Area can be Used for Floating Points | ||
| Programming Language Supported | Ladder Drawing (LD), Instruction List (IL) | ||
| Instruction Set | Basic Instructions: 55; Expansion Instructions: 251 | ||
| PasswordProtection | Yes | ||
| Max I/O Number | Digital Data: 14 in Total (DI8, DO6); | ||
| Analog Data: None | |||
| Counter | 64 | ||
| Operation Mode of Counter | Addition, Subtraction | ||
| Counter Range | -32768~32767 | ||
| Counting Value Retention Function | Yes | ||
| Timer | 64 | ||
| 1 ms time Base: 4 | |||
| 10 ms Time Base: 16 | |||
| 100 ms Time Base: 44 | |||
| High speed counter | 2 Single/Dual-Phase High-Speed Counters | ||
| Where, Single-Phase Counter with a Maximum Frequency of 20KHz | |||
| Dual-Phase Counter with a Maximum Frequency of 10KHz | |||
| Pulse output | 2, PTO (Pulse Train Output)/PWM (Pulse Width Modulation Output); | ||
| Maximum Output Frequency: 20 KHz(Note: the elay output CPU does not have high speed pluse function) | |||
| Analog Potentiometer | - | ||
| Interrupt function | Timing Interruption: 2, 1ms Resolution; | ||
| Timer Interruption: T2/T3, 1ms Resolution; | |||
| Edge Interruption: 4, Rising Edge or Falling Edge Optional; | |||
| High-Speed Interruption, Communication Interruption | |||
| Real-time cholck | 0 | ||
| Number of Connectable Expansion Modules | - | ||
| COM Port | 1, RS232 or RS485; | ||
| Supported Working Modes: Programming, Modbus-RTU (Slave), Free Protocol | |||
| Equipment Connected with COM Port | RS232/RS485: PC (For Programming), Third-Party HMI Panel, Third-Party Serial Communication Equipment (For Example, Instruments, Bar Code Reader, etc.) | ||
| Input Power Supply | AC85~265V | ||
| Sensor Load Power Supply | DC24V, Max. 300 mA | ||
| Dimensions (L*W*H) | 97X114X70mm | ||
